E Ink Display Electronic Label Paper 3.52 Inch Flexible AM EPD

Model: SE0352N01-A0

SE0352N01 is an Active Matrix Electrophoretic Display(AM EPD), with interface and a reference system design. The display is capable to display images at 1-bit white and black full display capabilities.

Size

3.52 Inch

Resolution

240*360 Pixels

Interface

SPI

Download Datasheet

E Ink Display Electronic Label Paper 3.52 Inch Flexible AM EPD

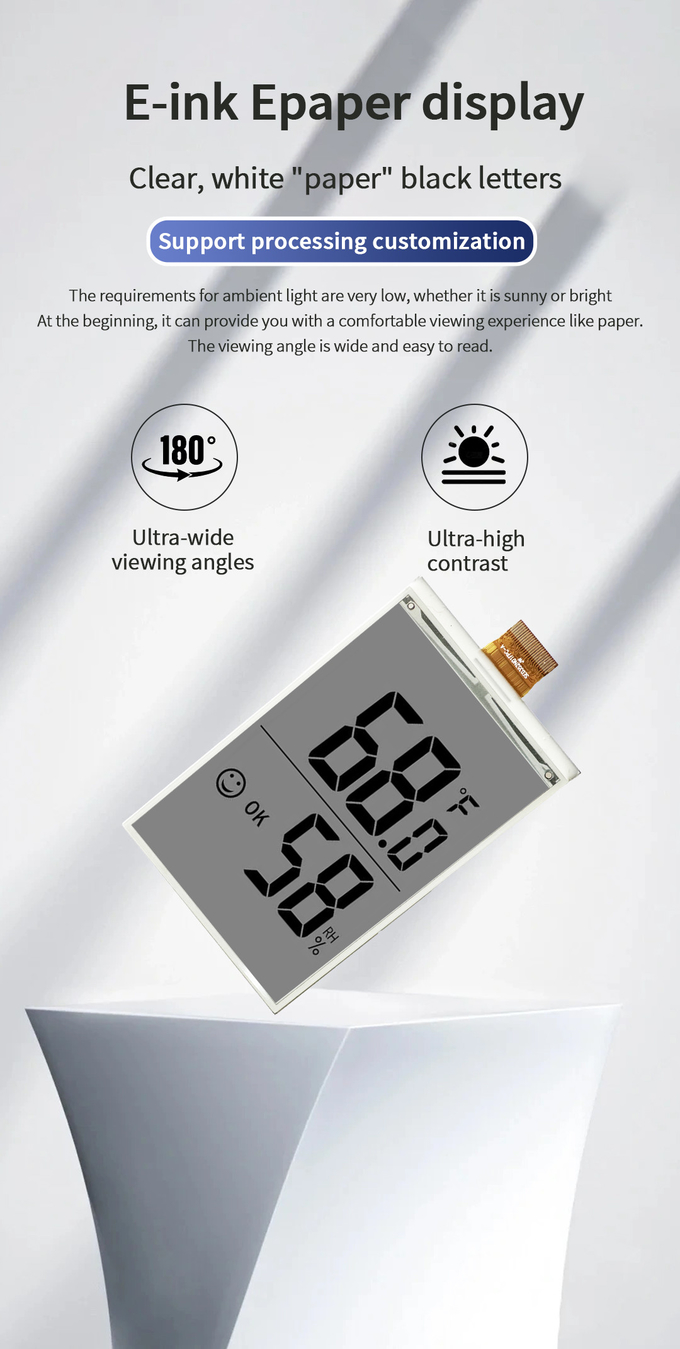

E Ink Display Electronic Label Paper 3.52 Inch Flexible AM EPD - view 1

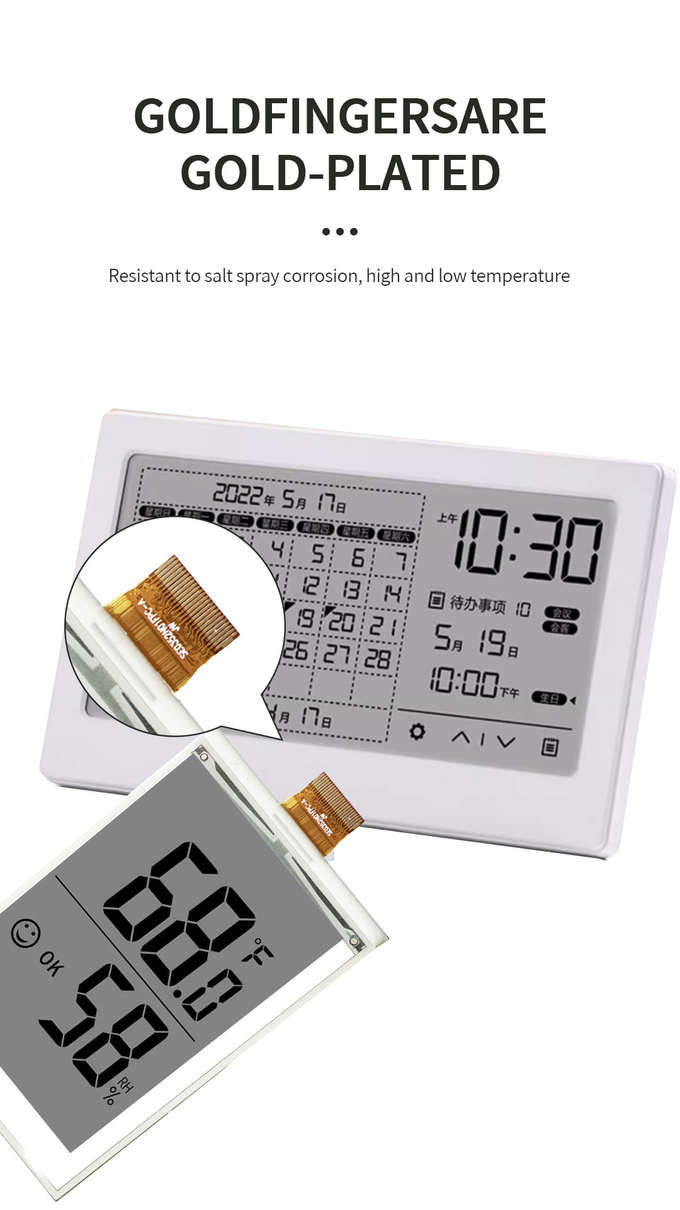

E Ink Display Electronic Label Paper 3.52 Inch Flexible AM EPD - view 2

E Ink Display Electronic Label Paper 3.52 Inch Flexible AM EPD - view 3

Product Description

1. General Description

SE0352N01 is an Active Matrix Electrophoretic Display(AM EPD), with interface and a reference system design. The

display is capable to display images at 1-bit white and black full display capabilities. The 3.52” active area contains

240x360 pixels. The module is a TFT-array driving electrophoretic display, with integrated circuits including gate

buffer, source buffer, MCU interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM. Module can be

used in portable electronic devices, such as Electronic Shelf Label (ESL) System.

2. Features

240×360 pixels display

White reflectance above 30%

Contrast ratio above 8:1

Ultra wide viewing angle

Ultra low power consumption

Pure reflective mode

Bi-stable display

Commercial temperature range

Landscape, portrait modes

Hard-coat antiglare display surface

Ultra Low current deep sleep mode

On chip display RAM

Waveform can stored in On-chip OTP or written by MCU

Serial peripheral interface available

On-chip oscillator

On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage

Built-in temperature sensor

3. Application

Electronic Shelf Label System

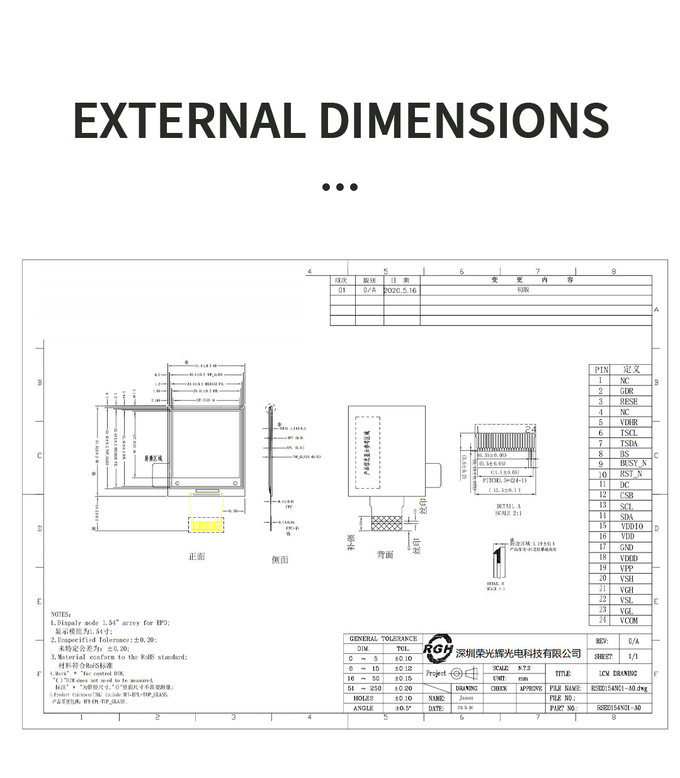

No.	Name	I/0	Description	Remark
1	NC		Do not connect with other NC pins
2	GDR	0	N-Channel MOSFETGate Drive Control
3	RESE	I	Current Sense Input for the Control Loop
4	NC		Do not connect with other NC pins
5	VDHR	C	Positive source driver voltage for Source
6	TSCL	0	IC Interface to digital temperature sensor Clock pin
7	TSDA	I/0	F²C Interface to digital temperature sensor Data pin
8	BS	I	Bus Interface selection pin	Note 5-4
9	BUSY N	0	Busy state output pin	Note 5-3
10	RST N	I	Reset signal input.Active Low.
11	DC	I	Data /Command control pin	Note 5-2
12	CSB	I	Chip select input pin	Note 5-1
13	SCL	I	Serial Clock pin (SPI)
14	SDA	I	Serial Data pin(SPD
15	VDDIO	P	Power Supply for interface logic pins.It should be connected with VDD
16	VDD	P	Power Supply for the chip
17	GND	P	Ground
18	VDDD	C	Core logic power pin VDD can be regulatedintermally from VCI.A capacitor should be connected between VDD and VSS under all circumstances
19	VPP	P	Power Supply for OTP Programming
20	VSH	C	Positive Source driving voltage
21	VGH	C	Positive Gate driving voltage
22	VSL	C	Negative Source driving voltage
23	VGL	C	Negative Gate driving voltage
24	VCOM	C	VCOM driving voltage
