This 3.5-inch IPS TFT LCD has 240*320 resolution with RGB 18bit interface. It features 12 o'clock viewing angle, LED backlight and 450 cd/m² brightness, offering clear images for embedded devices.

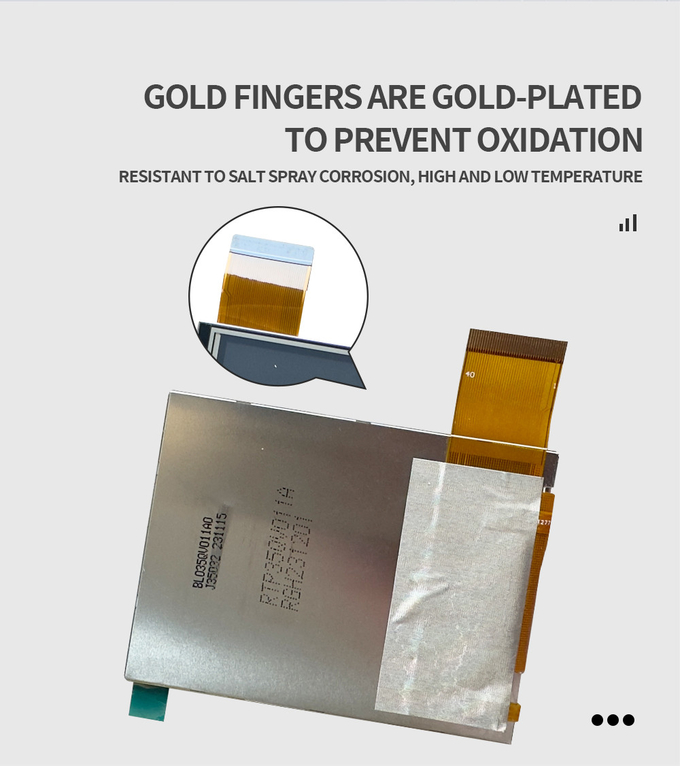

3.5 Inch TFT LCD Touch Display Module With 450 Cd/M2 Brightness And -20℃~70℃Operating Temperature
| Size | 3.5 inches |
| Resolution | 240*320 |
| Model | TFT LCD Display |
| Viewing Angle | 12:00 o'clock |
| Interface | RGB 18bit |
| Backlight Type | LED |
| Brightness | 450 cd/m² |
| Panel Type | IPS |
| NO. | Symbol | Level | Function |
| 1 | DE | Data enable signal for RGB interface operation | |
| 2-4 | GND | Ground. | |
| 5 | NC | NC | |
| 6-11 | R0-R5 | data bus | |
| 12-17 | G0-G5 | data bus | |
| 18-23 | B0-B5 | data bus | |
| 24 | SCL | Serial clock input for SPl interface. | |
| 25 | SDA | Serial data inputloutput bidirectional pin for SPI Interface. | |
| 26 | CS | chip select signal | |
| 27 | DCLK | Dot clock signal for RGB interface operation | |
| 28 | RESET | Reset pin | |
| 29 | HS | Line synchronizing signal for RGB interface operation | |
| 30 | VS | Frame synchronizing signal for RGB interface operation | |
| 31 | VCC | Power Supply (Analog) | |
| 32 | IOvCC | Power Supply (Logic) | |
| 33 | GND | Ground. | |
| 34 | LEDA | Back Light Power Supply Anode(+) | |
| 35 | LEDK | Back Light Power Supply Cathode(-) | |
| 36 | GND | Ground. | |
| 37 | XR | Touch Panel XR | |
| 38 | YD | Touch Panel YD | |
| 39 | XL | Touch Panel XL | |
| 40 | TU | Touch Panel YU |
Custom LCD FAQ
1. Are you a factory or a trading company?
we are a high-tech manufacturer specializing in the R&D, production, and sales of LCD and LCM since 2011. At present, we have two factories in Dongguan.
2.What are our main products?
Providing One-stop Liquid Crystal Display and LCM Series, such as COG, COB, ) Customized LCD Series, including Touch Panels
3.What kind of certification do we have?
Our factories have passed ISO9001, 14001 and other certifications.
4. What size LCD display can you provide?
0.96 inch to 21.5 inch TFT LCD display we can provide.
