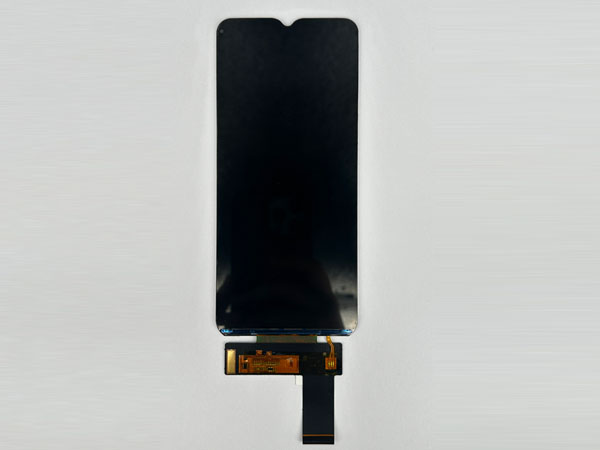

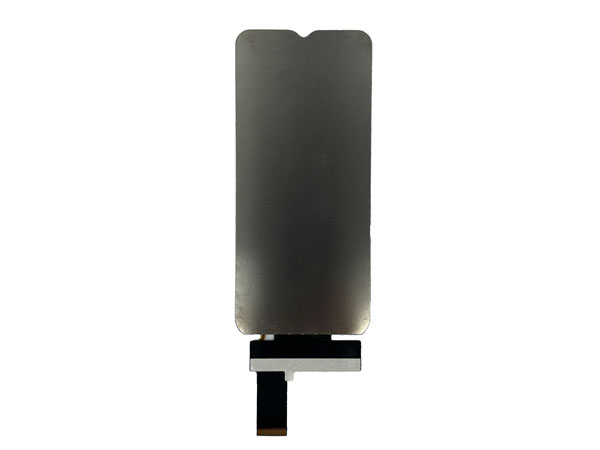

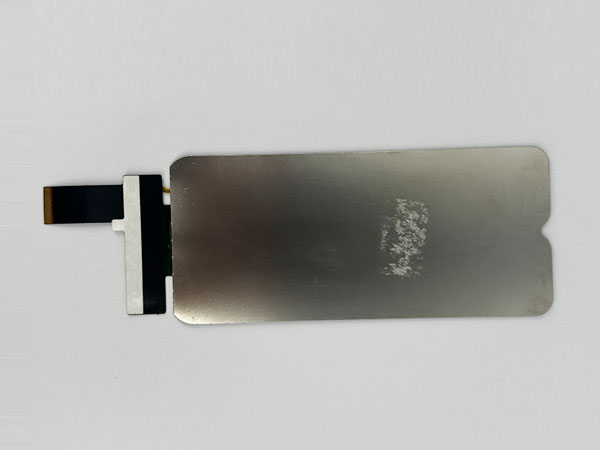

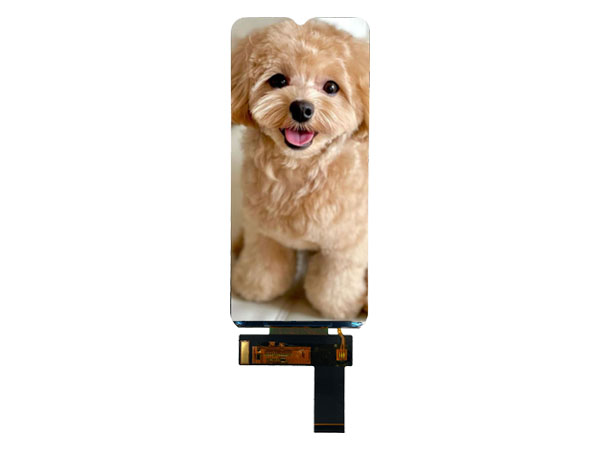

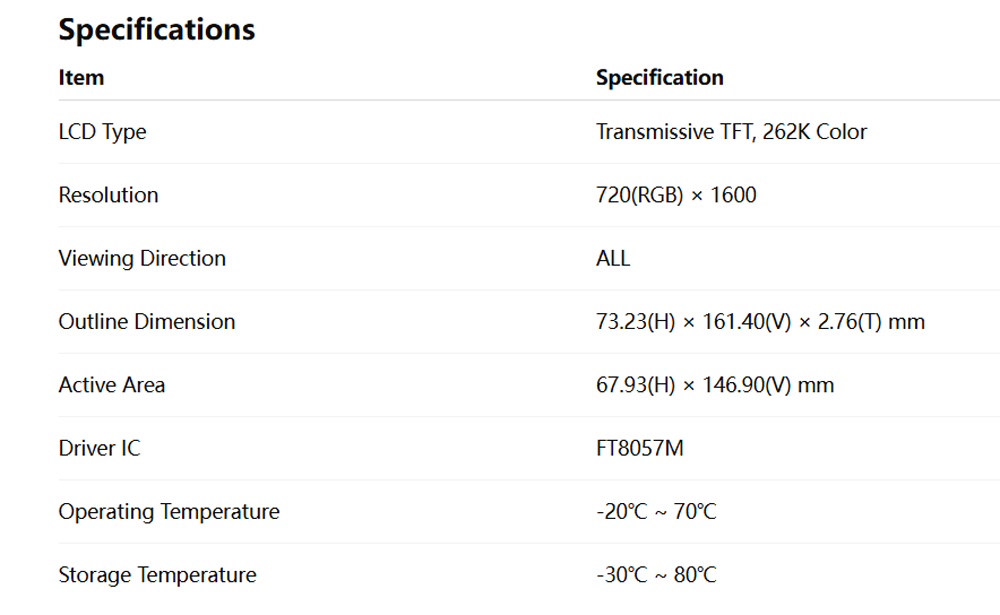

This high-performance TFT LCD display module features a 720(RGB) × 1600 high-definition resolution, delivering sharp image quality, vivid colors, and smooth visual performance. Designed with Transmissive TFT technology and supporting 262K colors, the display provides excellent clarity and a premium viewing experience for modern smart devices.

With an ALL viewing direction design, the screen maintains consistent brightness and color performance from multiple angles, making it ideal for applications requiring superior display visibility and user interaction.

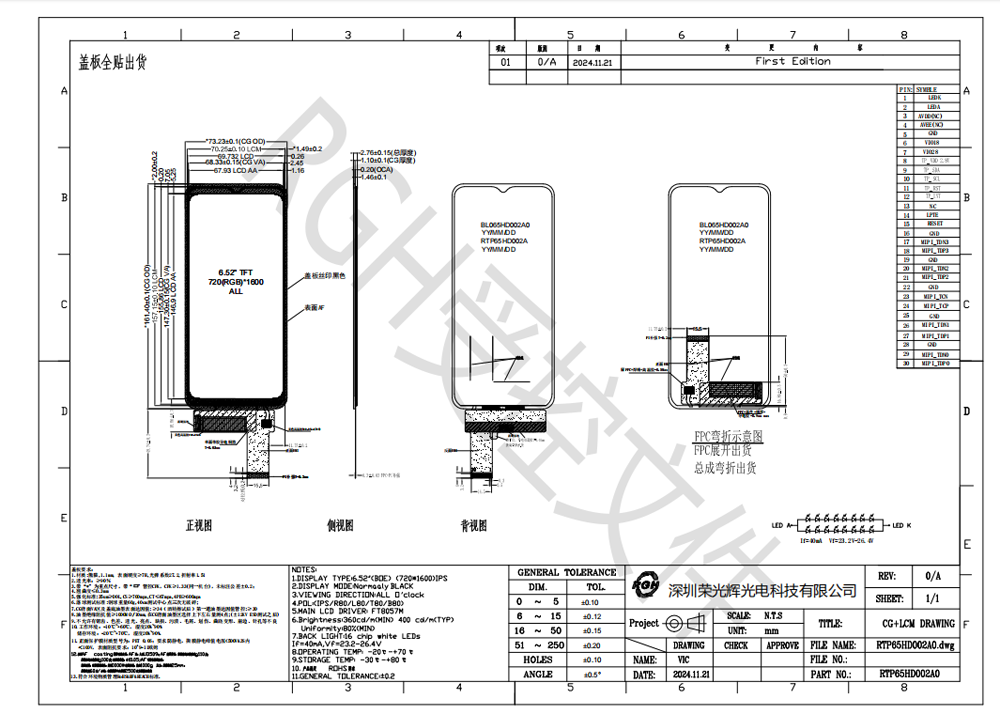

The module adopts a slim and lightweight structure with an outline dimension of 73.23(H) × 161.40(V) × 2.76(T) mm and an active area of 67.93(H) × 146.90(V) mm, helping manufacturers achieve compact and stylish product designs.

Powered by the FT8057M driver IC, the display ensures stable performance and reliable operation across a wide range of environments. It supports an operating temperature range of -20℃ to 70℃ and a storage temperature range of -30℃ to 80℃, making it suitable for both consumer and industrial applications.
