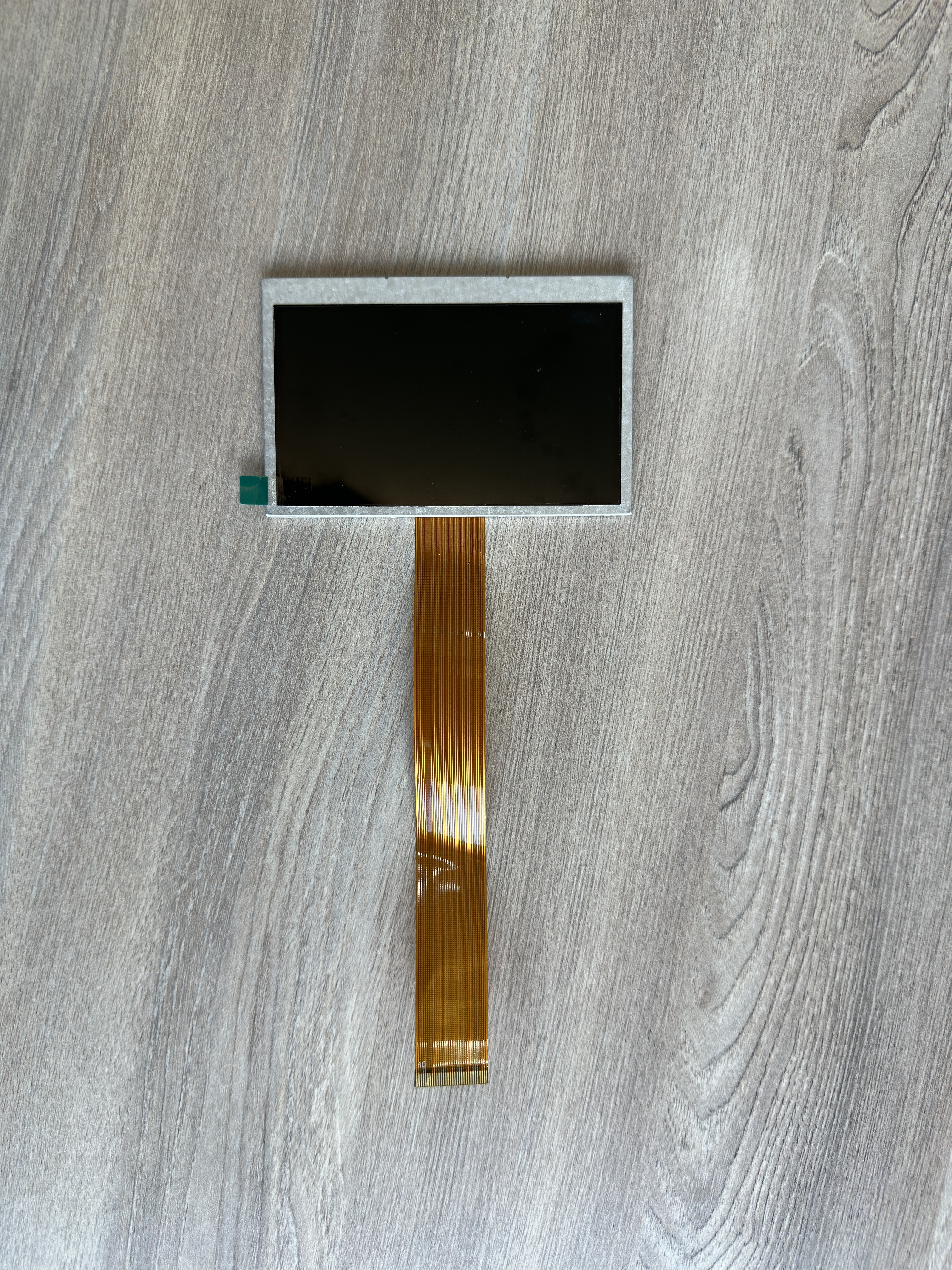

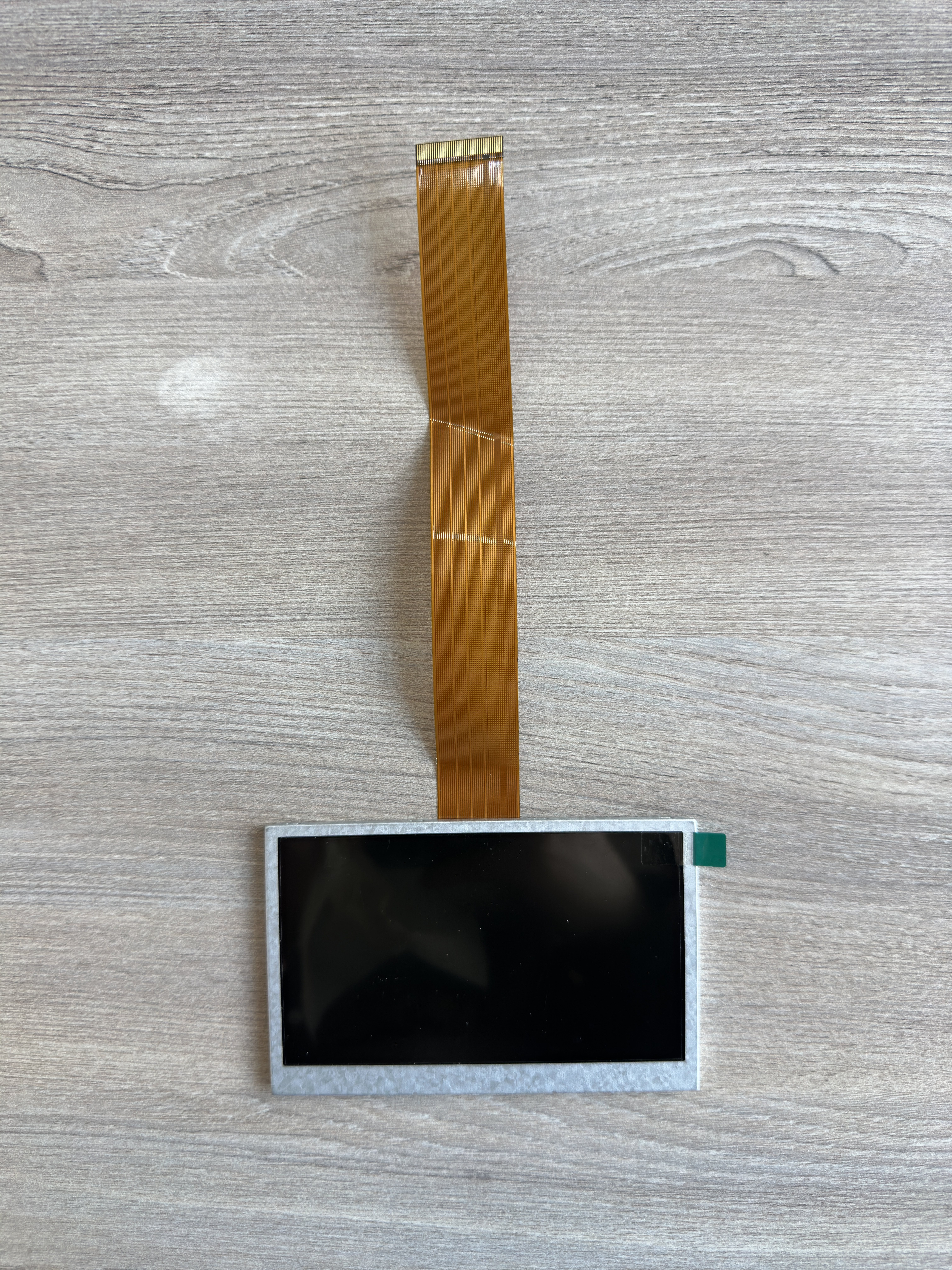

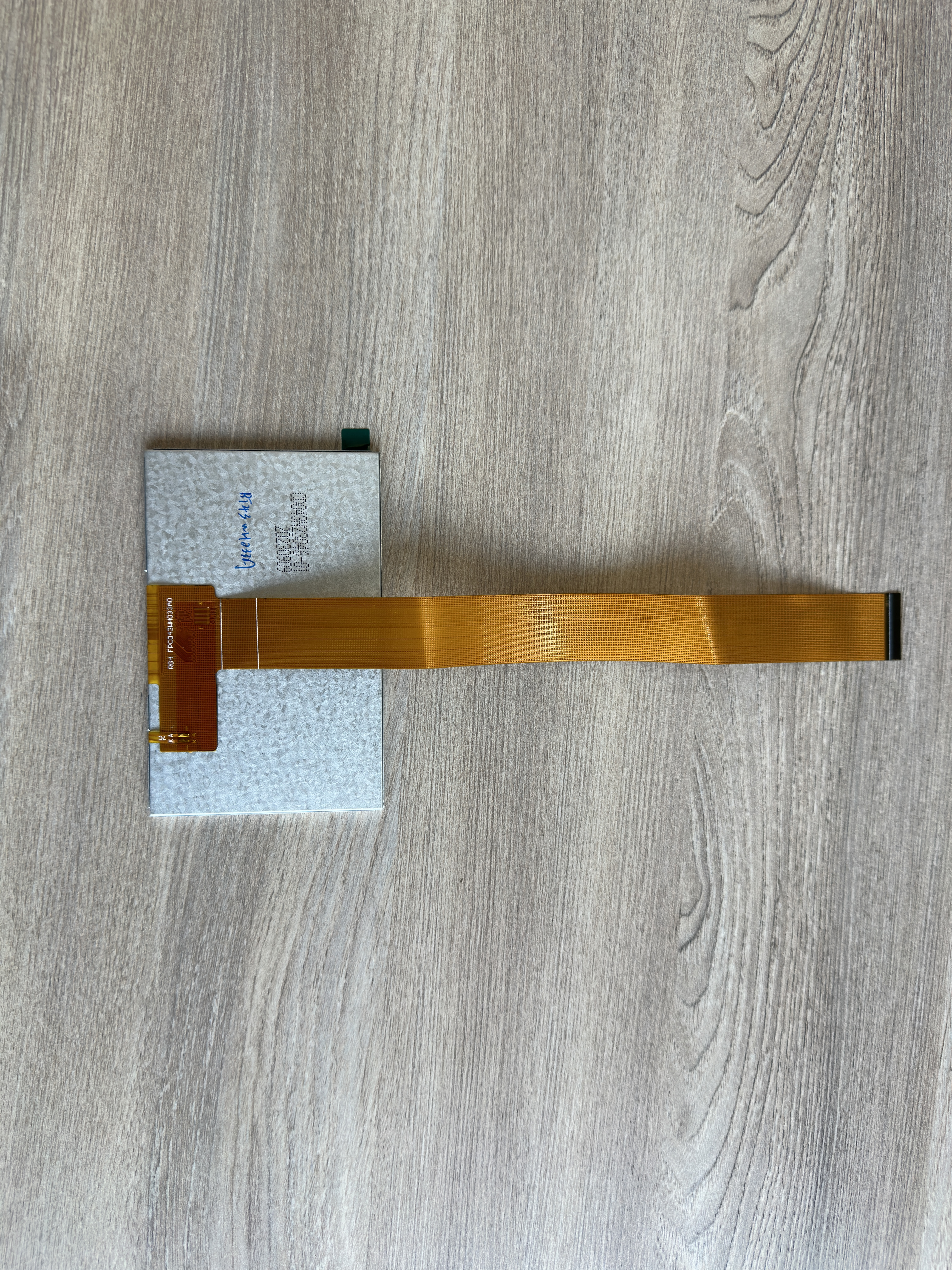

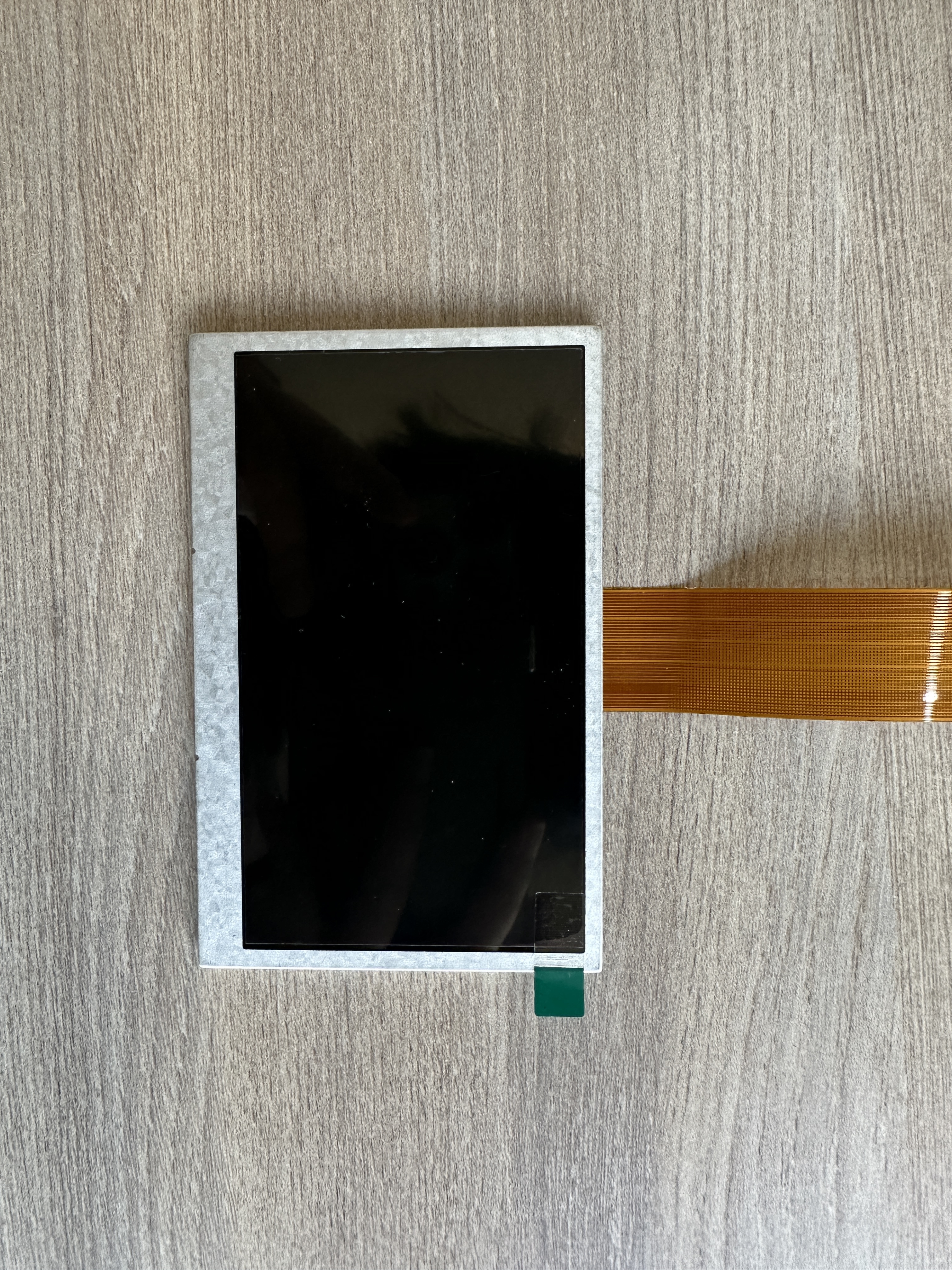

This 4.3-inch TFT LCD display module offers a balanced combination of clarity, durability, and compact design—making it an excellent choice for a wide range of embedded and handheld applications. With a resolution of 480 × 272 pixels and 16-bit RGB interface support, it delivers smooth graphics and vibrant visuals suited for user interfaces, instrumentation, and control panels. Featuring a transmissive TFT LCD type, the module provides a brightness of 350 cd/m² and is optimized for 12 o’clock
| Size | 4.3inch |
| Resolution | 480*272 |
| Brightness | 350cd/m2 |
| Viewing direction | 12 o'clock |
| Backlight | LED |
| Interface | RGB,16-bit) |
| Driving IC | NV3047EGBE |
| LCD Type | Transmissive TFT |
Interface Definition
| NO. | Symbol | Level | Function |
| 1 | GND | Ground. | |
| 2 | LEDK | LED,cathode. | |
| 3 | LEDA | LED,anode. | |
| 4 | VCC | Power supply. | |
| 5-9 | R7-R3 | Data Bus.Serial 8-bit data input selection. | |
| 10 | GND | Ground. | |
| 11-16 | G7-G2 | Data Bus.Serial 8-bit data input selection. | |
| 17 | GND | Ground. | |
| 18-22 | B7-B3 | Data Bus.Serial 8-bit data input selection. | |
| 23 | DCLK | Sample clock. | |
| 24 | GND | Ground. | |
| 25 | DISP | DISP | |
| 26 | HS | Horizontal synchronizing signal. | |
| 27 | VS | Vertical synchronizing signal. | |
| 28 | DE | Data Enable. | |
| 29 | CS | Chip select input pin | |
| 30 | SCL | Serial interface clock line | |
| 31 | SDA | Serial interface data line | |
| 32-34 | NC | NC | |
| 35 | RESET | System reset pin | |
| 36 | XR(NC) | XR(NC) | |
| 37 | YD(NC) | YD(NC) | |
| 38 | XL(NC) | XL(NC) | |
| 39 | YU(NC) | YU(NC) | |
| 40 | GND | Ground. |
